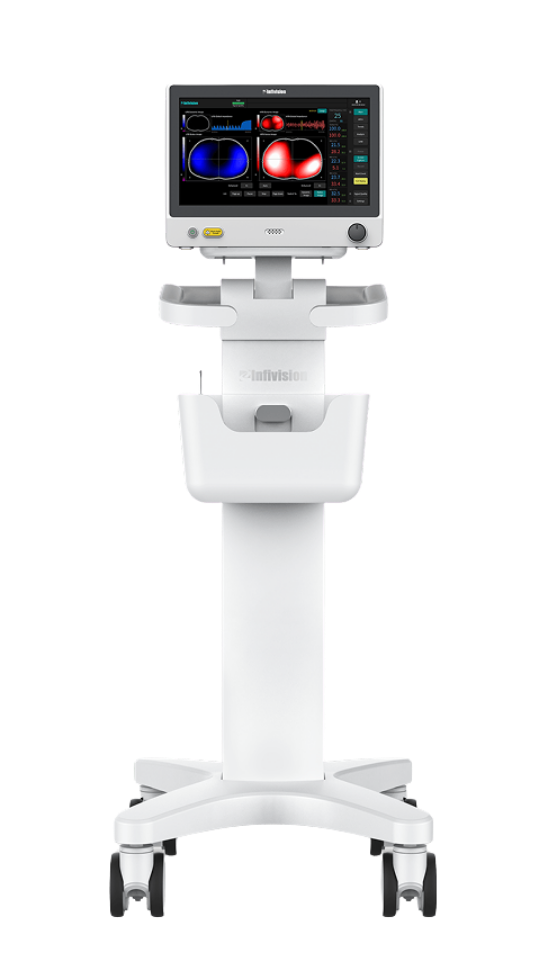

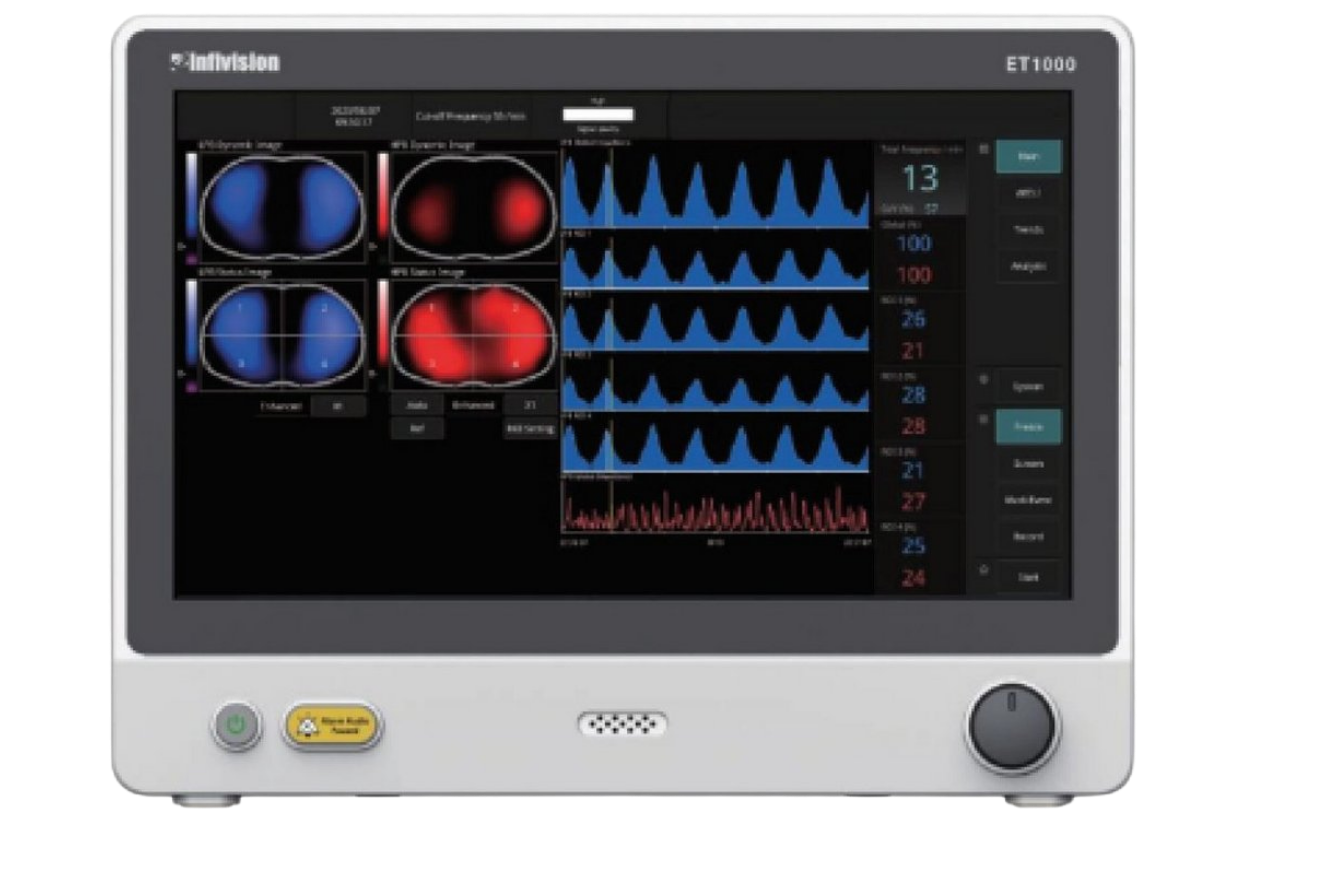

Infivision ET1000
Continuous bedside imaging of regional ventilation using Electrical Impedance Tomography.

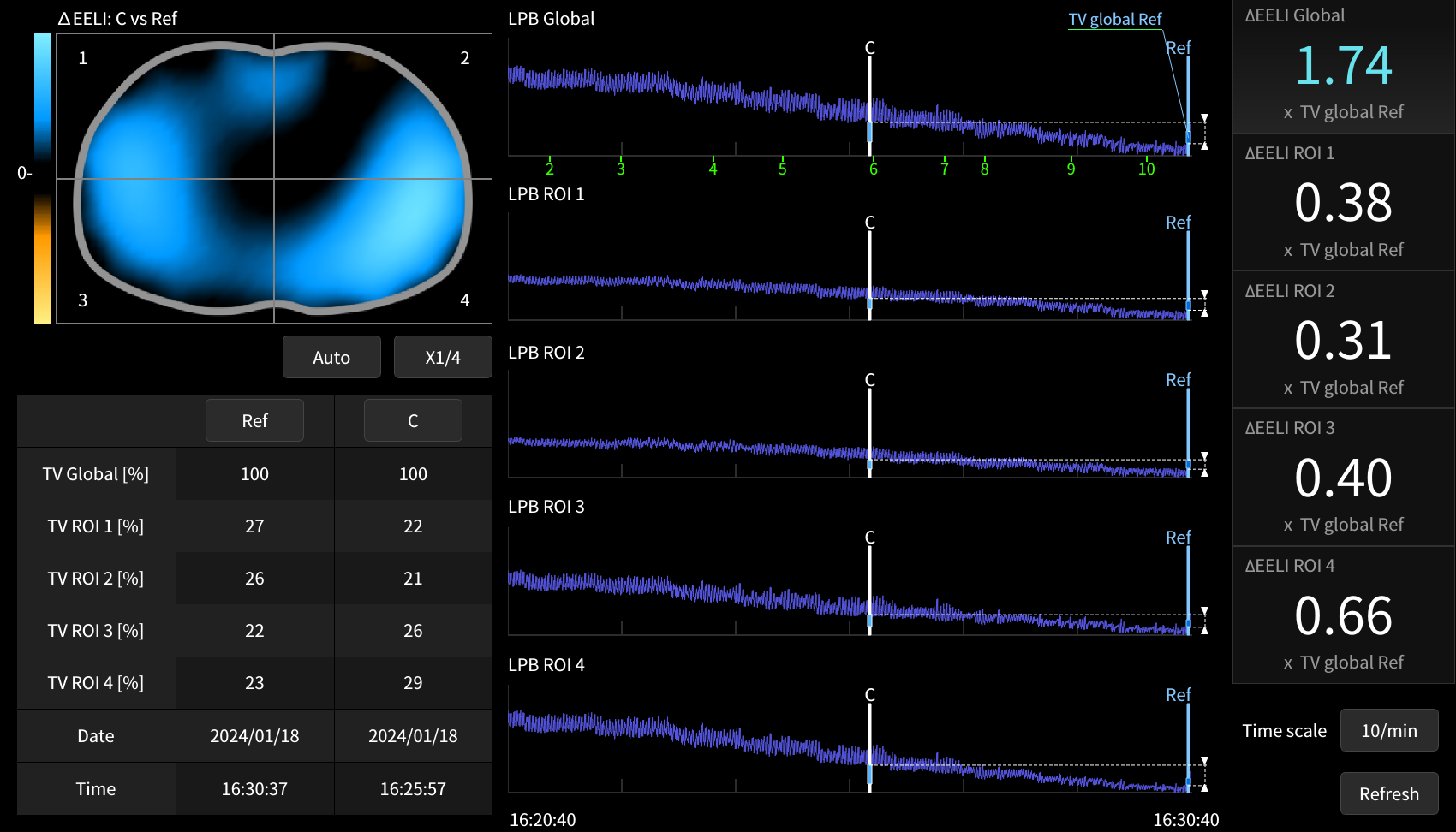

Global ventilation parameters do not reflect regional lung behavior. ET1000 provides continuous bedside Electrical Impedance Tomography — mapping ventilation distribution breath by breath and visualizing recruitment, overdistension, and response to PEEP and positioning, radiation-free and size-adapted across patient populations.
- Regional ventilation mapping — Identifies collapse and overdistension at the lung level.
- Real-time response assessment — Evaluates effect of PEEP, positioning, and recruitment.
- Continuous monitoring — Tracks changes breath by breath.
- Radiation-free — Supports repeated assessment without exposure.
- Painless, radietion free
- Bedside deployment — no transport required.
- Continuous acquisition — no interruption to care.
- Automated data acquisition via electrode belt — not operator-dependent.

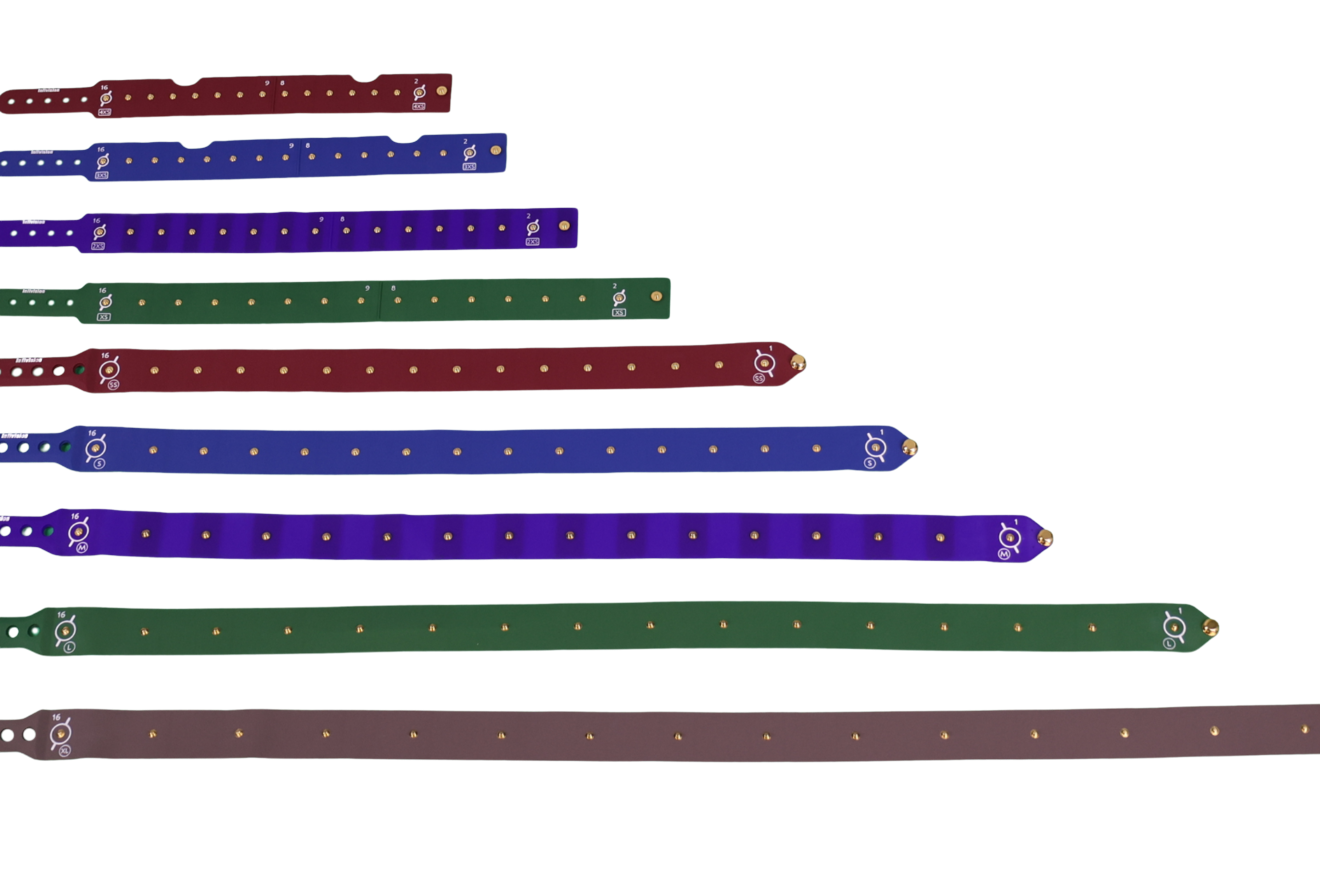

- Size-adapted belts across patient populations.
- Integrated trending for longitudinal analysis.

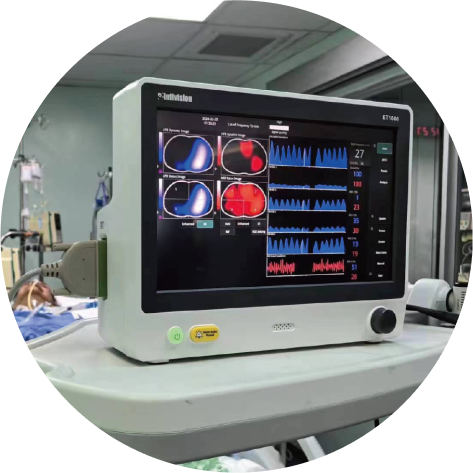

Used for bedside assessment of regional lung behavior in mechanically ventilated patients, including ARDS, atelectasis, and post-operative respiratory failure. Enables visualization of recruitment, overdistension, and regional response to PEEP and positioning, breath by breath.
