ATOM BILI-THERAPY Pad Type
LED underbody phototherapy pad – three irradiance levels up to 53 µW/cm²/nm; compatible with simultaneous overhead phototherapy for double-surface treatment.

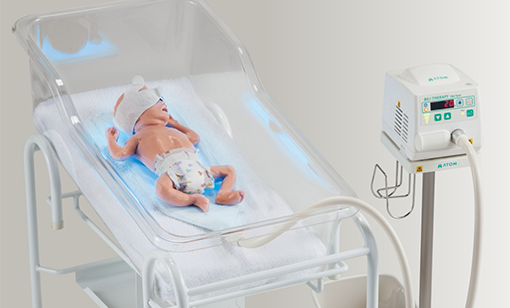

Conventional overhead phototherapy requires the neonate to be unclothed and supine for extended periods, interrupting skin-to-skin contact, breastfeeding, and parental interaction. The ATOM BILI-THERAPY Pad Type delivers phototherapy through direct pad-to-skin contact beneath the infant, with three selectable irradiance levels: High 53 µW/cm²/nm (3.2 mW/cm²), Medium 40 µW/cm²/nm, and Low 26.5 µW/cm²/nm. At the high setting, irradiance exceeds the AAP threshold for intensive phototherapy. The pad can be combined with the ATOM BILI-THERAPY Spot Type for double-surface phototherapy.
- Dorsal-surface irradiance without repositioning — Continuous phototherapy via pad placement beneath the neonate.
- Three-level irradiance selection — Matches output to bilirubin trajectory.
- AAP-guideline-aligned irradiance at high setting — Exceeds the AAP threshold for intensive phototherapy.
- Compatible with simultaneous overhead phototherapy — Enables double-surface treatment.
- Pad form factor — supports continued bassinet, incubator, or skin-to-skin contact.
- Pre-matched modular use with ATOM BILI-THERAPY Spot Type.
- Standard institutional cleaning workflow.
Used in neonatal jaundice requiring phototherapy where preserving infant positioning, parental contact, and feeding is clinically important. Enables continuous dorsal-surface phototherapy at AAP-aligned irradiance, with the option of double-surface treatment when escalation is required.
